    Swage Tension Fork
    Swage Tension Fork

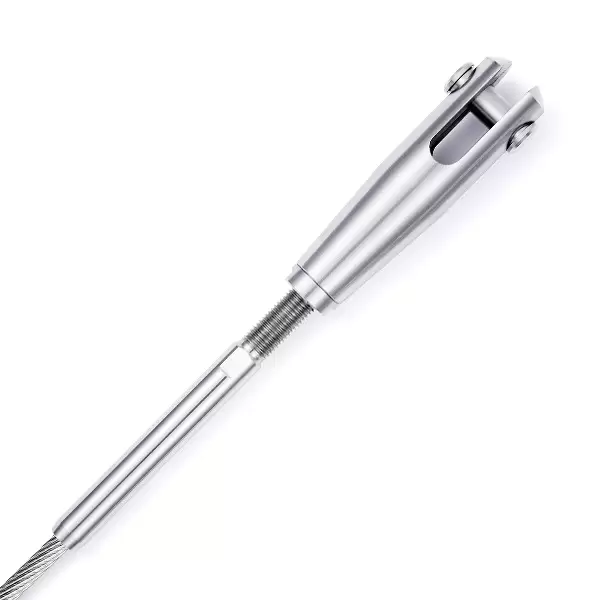

    Swage Tension Fork Assembly

    The Swage Tension Fork cable system combines a fully-machined fork clevis and a swage stud ( F361 Swage Tension Fork) at either end of the wire. The result is a sleek and symmetrical cable assembly, that provides tensioning without the need for turnbuckles.

    Adjustment is achieved by rotation of the swage studs in a clockwise/anti-clockwise direction.

    • Fittings can be provided in Satin (standard) or Polished Finish
    • Can also be used in combination with a Sta-Lok Self-Fit stud for a DIY wire assembly using simple hand tools



    Want our in-house rigging team to make this cable for you? Our technical team will be delighted to talk through your rigging requirements

    Product Code: F361 ASSEMBLY

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only
    SKU Wire Size (Metric)Thread (Metric)Length (MM)
    F361 ASSEMBLY 3MM M6 3 MM M6 MTO
    F361 ASSEMBLY 4MM M6 4 MM M6 MTO
    F361 ASSEMBLY 4MM M8 4 MM M8 MTO
    F361 ASSEMBLY 5MM M8 5 MM M8 MTO
    F361 ASSEMBLY 5MM M10 5 MM M10 MTO
    F361 ASSEMBLY 6MM M10 6 MM M10 MTO
    F361 ASSEMBLY 6MM M12 6 MM M12 MTO
    F361 ASSEMBLY 8MM M12 8 MM M12 MTO
    F361 ASSEMBLY 8MM M16 8 MM M16 MTO
    F361 ASSEMBLY 10MM M16 10 MM M16 MTO
    F361 ASSEMBLY 10MM M20 10 MM M20 MTO
    F361 ASSEMBLY 12MM M20 12 MM M20 MTO
    F361 ASSEMBLY 14MM M22 14 MM M22 MTO
    F361 ASSEMBLY 16MM M24 16 MM M24 MTO
