    Swage Stud Closed Body
    Swage Stud Closed Body

    Swage Stud Assembly

    The Swage Stud Assembly is one of the most commonly used stainless steel wire rope assemblies.

    Whether it is being used in conjunction with 1×19, 7×7 or 7×19 wire rope, the Swage Stud Assembly is found in a wide reaching range of applications.

    This assembly utilises our 061 Swage Stud at either end of the wire rope. It can then be finished with a range of nuts and washers to achieve the desired result.

    • Manufactured from high specification 316 stainless steel
    • Can be provided with Right Hand or Left Hand Threads
    • Assembly could also be produced with a Swage Stud at one end, with the wire overcut and a Sta-Lok Self-Fit Stud supplied loose for a DIY fitting – A great option if final measurements are not certain.



    Want our in-house rigging team to make this cable for you? Our technical team will be delighted to talk through your rigging requirements.

    Product Code: 061 ASSEMBLY

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only
    SKU Wire Size (Metric)Thread (Metric)Length (MM)
    061 ASSEMBLY 3MM M6 3 MM M6 MTO
    061 ASSEMBLY 4MM M6 4 MM M6 MTO
    061 ASSEMBLY 4MM M8 4 MM M8 MTO
    061 ASSEMBLY 5MM M8 5 MM M8 MTO
    061 ASSEMBLY 5MM M10 5 MM M10 MTO
    061 ASSEMBLY 6MM M10 6 MM M10 MTO
    061 ASSEMBLY 6MM M12 6 MM M12 MTO
    061 ASSEMBLY 7MM M12 7 MM M12 MTO
    061 ASSEMBLY 8MM M12 8 MM M12 MTO
    061 ASSEMBLY 8MM M16 8 MM M16 MTO
    061 ASSEMBLY 10MM M16 10 MM M16 MTO
    061 ASSEMBLY 12MM M20 12 MM M20 MTO
    061 ASSEMBLY 16MM M24 16 MM M24 MTO
    061 ASSEMBLY 19MM M27 19 MM M27 MTO
    061 ASSEMBLY 22MM M30 22 MM M30 MTO
    061 ASSEMBLY 26MM M36 26 MM M36 MTO

    Related products

    This product has multiple variants. The options may be chosen on the product page

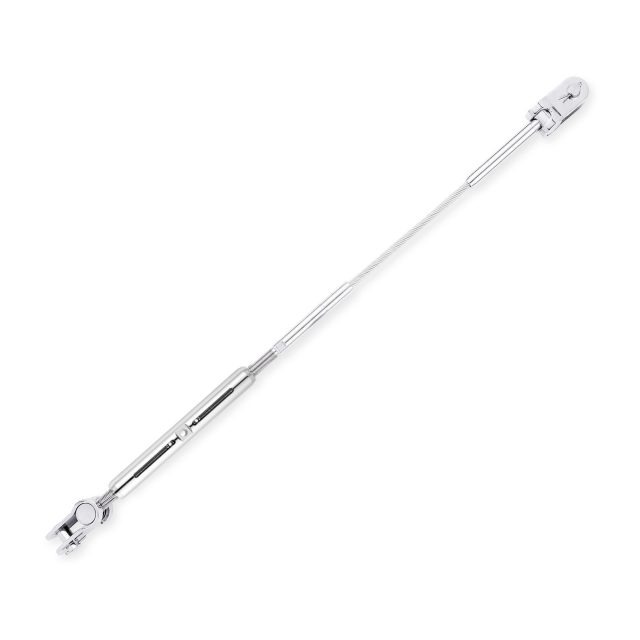

    SS Toggle & Swage to Swage Toggle
    This product has multiple variants. The options may be chosen on the product page

    Hard Eye Assembly
    This product has multiple variants. The options may be chosen on the product page

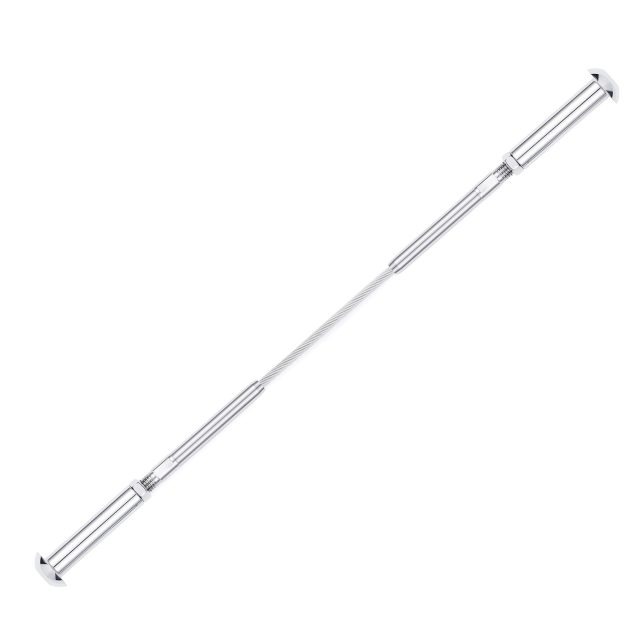

    Dome Head Adjuster Assembly
