Name: Swage T
SKU: 044/144
Availability: InStock

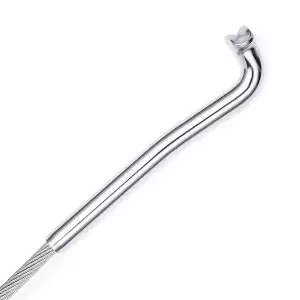

Swage T

Suitable for use with rotary & fixed die swaging machine

Manufactured from high specification 316 stainless steel

Use with 1×19, 7 Strand and compacted stand wire rope (IWRC)

Minimum hole depth 10x wire diameter

Metric and Inch wire ropes

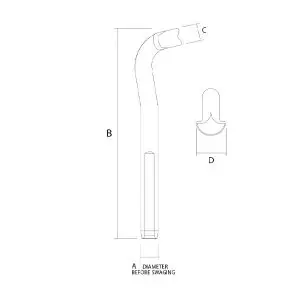

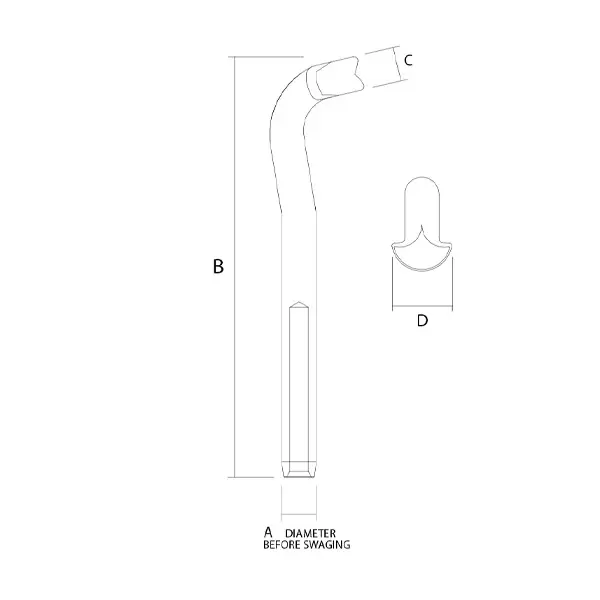

Wire Size (Metric)

Wire Size (Imperial)

A (MM)

A (INCH)

B (MM)

B (INCH)

C (MM)

C (INCH)

D (MM)

D (INCH)

Weight (KG)

Weight (LB)

Clear

Product Code: 044/144

SKU

Wire Size (Metric)

Wire Size (Imperial)

A (MM)

A (INCH)

B (MM)

B (INCH)

C (MM)

C (INCH)

D (MM)

D (INCH)

Weight (KG)

Weight (LB)

044-03

3 MM

6.3

0.248

86.0

3.386

6.3

0.248

15.0

0.591

0.025

0.055

044-04

4 MM

5/32"

7.5

0.295

101.0

3.976

7.5

0.295

17.1

0.675

0.040

0.088

044-05

5 MM

3/16"

9.0

0.354

112.0

4.409

9.0

0.354

19.5

0.769

0.060

0.132

044-06

6 MM

12.5

0.492

136.0

5.354

12.6

0.496

27.7

1.089

0.140

0.309

144-06

1/4"

12.5

0.492

136.0

5.354

12.6

0.496

27.7

1.089

0.140

0.309

044-07

7 MM

9/32"

14.2

0.559

148.0

5.826

14.0

0.551

30.0

1.180

0.180

0.397

044-08

8 MM

5/16"

16.0

0.630

184.0

7.244

16.0

0.630

34.4

1.353

0.300

0.661

044-10

10 MM

17.8

0.701

214.0

8.425

17.5

0.689

36.4

1.434

0.420

0.926

144-10

3/8"

17.8

0.701

214.0

8.425

17.5

0.689

36.4

1.434

0.420

0.926
