    Swage Eye Toggle Fork

    • Suitable for use with rotary & fixed die swaging machine
    • Manufactured from high specification 316 stainless steel
    • Use with 1×19, 7 Strand and compacted stand wire rope (IWRC)
    • Metric and Inch wire ropes
    • Minimum hole depth 10x wire diameter
    • Unique toggle action for articulation in two planes
    • Modular system
    Add to Quote
    Product Code: 038 ET/132 ET

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only

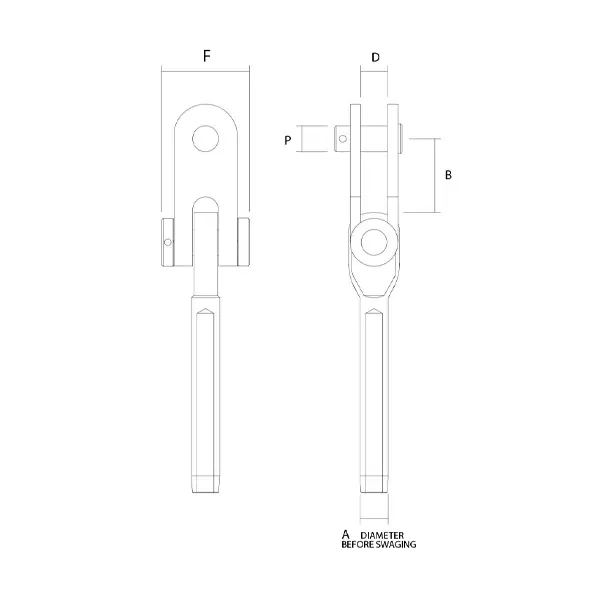

    SKU Wire Size (Metric)Wire Size (Imperial)A (MM)A (INCH)B (MM)B (INCH)D (MM)D (INCH)F (MM)F (INCH)P (MM)P (INCH)Weight (KG)Weight (LB)
    132 ET-11-16 -7/16"19.60.77657.42.26020.00.78766.02.59816.05/8"1.4203.131
    132 ET-11 -7/16"19.60.77656.02.20520.00.78766.02.59818.53/4"1.4203.131
    038 ET-12-16 12 MM-19.60.77657.42.26020.00.78766.02.59816.05/8"1.4203.131
    038 ET-12 12 MM-21.30.83956.02.20520.00.78766.02.59818.53/4"1.4203.131
    132 ET-12 -1/2"21.30.83956.02.20520.00.78766.02.59818.53/4"1.4203.131
    038 ET-14-34 14 MM9/16"24.90.97964.02.52025.00.98478.03.07118.53/4"2.1604.762
    038 ET-14-20 14 MM9/16"24.90.97964.02.52025.00.98478.03.07120.00.7872.1604.762
    038 ET-14 14 MM9/16"24.90.97963.02.48025.00.98478.03.07121.57/8"2.1604.762
    038 ET-16 16 MM5/8"28.01.10467.52.65728.01.10282.03.22825.01"3.0806.790
    038 ET-16-22 16 MM5/8"28.01.10469.42.73228.01.10282.03.22822.07/8"3.0806.790
    038 ET-19 19 MM3/4"34.41.35470.02.75631.51.24089.03.50428.21 1/8"4.70010.362
    038 ET-22 22 MM7/8"40.31.58879.03.11035.01.37898.03.85831.51 1/4"6.80014.991
    038 ET-26 26 MM1"45.81.80798.03.85838.01.496110.04.33134.61 3/8"9.50020.944
