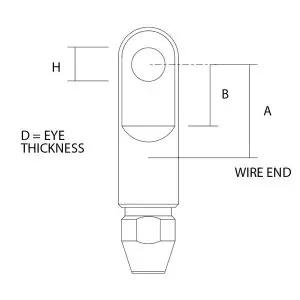

    Sta-Lok-Self-Fit-Eye-Dimensions

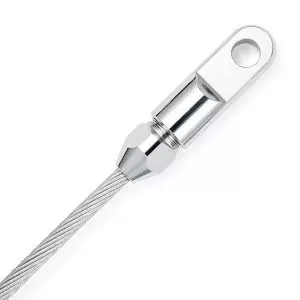

    Sta-Lok-Self-Fit-Stainless-Eye
    Sta-Lok-Self-Fit-Eye-Dimensions

    Sta-Lok Eye

    • Sta-Lok Self-Fit Terminal, the reusable alternative to machine swaging
    • Only basic hand tools required
    • No pre-measurement needed
    • Quick and easy to install
    • Manufactured from high specification 316 stainless steel
    • Guaranteed stronger than wire rope
    • For right hand and left hand lay wire rope
    • Packed for 1×19 wire as standard
    • Different wedges are available to terminate 7 strand & compacted strand wire ropes
    Clear
    Add to Quote
    Product Code: 033/133

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only
    SKU Wire Size (Metric)Wire Size (Imperial)A (MM)A (INCH)B (MM)B (INCH)D (MM)D (INCH)H (MM)H (INCH)Weight (KG)Weight (LB)
    033-03 3 MM1/8"17.90.70510.00.3935.00.1966.51/4"0.0200.044
    033-04 4 MM5/32"20.30.80014.70.5805.80.2308.05/16"0.0400.088
    033-05 5 MM-24.40.96018.00.7107.50.29510.03/8"0.0800.176
    133-05 -3/16"24.40.96018.00.7107.50.29510.03/8"0.0800.176
    133-55-3/8 -7/32"32.41.27623.70.9339.50.37510.03/8"0.1400.309
    133-55-7/16 -7/32"31.71.24823.00.9049.50.37511.57/16"0.1400.309
    033-06 6 MM-31.01.21922.20.8759.50.37513.01/2"0.1400.309
    133-06-3/8 -1/4"32.41.27623.70.9339.50.37510.03/8"0.1400.309
    133-06-7/16 -1/4"31.71.24823.00.9049.50.37511.57/16"0.1400.309
    133-06 -1/4"31.01.21922.20.8759.50.37513.01/2"0.1400.309
    033-07 7 MM9/32"32.51.28124.60.96910.50.41313.01/2"0.1600.353
    033-08-1/2 8 MM5/16"35.71.40627.01.06212.00.47213.01/2"0.2400.529
    033-08-5/8 8 MM5/16"35.71.40627.01.06213.50.53116.05/8"0.2800.617
    033-10 10 MM-41.11.61929.21.15013.50.53116.05/8"0.3400.750
    033-10-3/4 10 MM-41.11.61929.21.15013.50.53119.53/4"0.4000.882
    133-10 -3/8"41.11.61929.21.15013.50.53116.05/8"0.3400.750
    133-10-3/4 -3/8"41.11.61929.21.15013.50.53119.53/4"0.4000.882
    133-11 -7/16"42.81.68733.31.31219.00.74819.53/4"0.6801.499
    033-12 12 MM-42.81.68733.31.31219.00.74819.53/4"0.6801.499
    133-12 -1/2"42.81.68733.31.31219.00.74819.53/4"0.6801.499
    133-12-7/8 -1/2"42.81.68733.31.31219.00.74822.57/8"0.7001.543
    033-14 14 MM9/16"55.62.18738.11.50020.00.78822.57/8"1.1002.425
    033-14-1 14 MM9/16"55.62.18738.11.50020.00.78825.41"1.2202.690
    033-16 16 MM5/8"59.02.32640.01.57620.00.78822.57/8"1.4203.131
    033-16-1 16 MM5/8"60.02.36440.01.57620.00.78825.41"1.7003.748
    033-19 19 MM3/4"68.32.68749.21.93727.01.06228.61 1/8"2.8206.217
    033-22 22 MM7/8"82.63.25060.32.37533.31.31235.01 3/8"3.9608.730
    033-26 26 MM1"86.03.37560.32.37533.31.31235.01 3/8"5.30011.684
