    Swage Eye
    Stainless-Steel-Swage-Eye-Dimensions
    Swage Eye
    Stainless-Steel-Swage-Eye-Dimensions

    Swage Eye

    • Suitable for use with rotary & fixed die swaging machine
    • Manufactured from high specification 316 stainless steel
    • Use with 1×19, 7 Strand and compacted stand wire rope (IWRC)
    • Metric and Inch wire ropes
    • Minimum hole depth 10x wire diameter
    Product Code: 039/039N

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only
    SKU Wire Size (Metric)Wire Size (Imperial)A (MM)A (INCH)D (MM)D (INCH)H (MM)H (INCH)Weight (KG)Weight (LB)Style

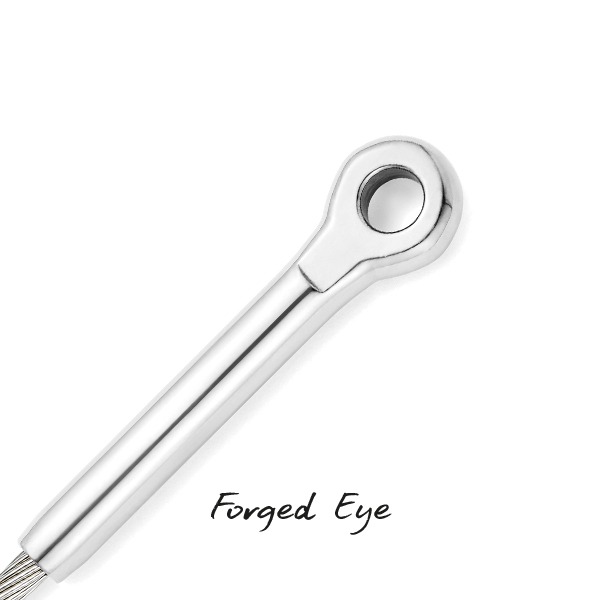

    039-03 3 MM1/8"6.20.2455.00.1976.41/4"0.0200.044Forged
    039-04 4 MM5/32"7.40.2926.50.2568.15/16"0.0200.044Forged
    039-05 5 MM3/16"9.00.3547.80.3079.63/8"0.0400.088Forged
    039-06 6 MM-12.40.4889.50.37411.27/16"0.0800.176Forged
    039-07 7 MM9/32"14.20.55811.50.45312.81/2"0.1200.265Forged
    039-08-1/2 8 MM5/16"16.10.63011.50.45312.81/2"0.1400.309Forged
    039-08 8 MM5/16"16.10.63013.50.53114.59/16"0.1800.397Forged
    039-08-58 8 MM5/16"16.10.63015.00.59116.15/8"0.1800.397Forged
    039-10 10 MM-17.70.69815.00.59116.15/8"0.2400.529Forged

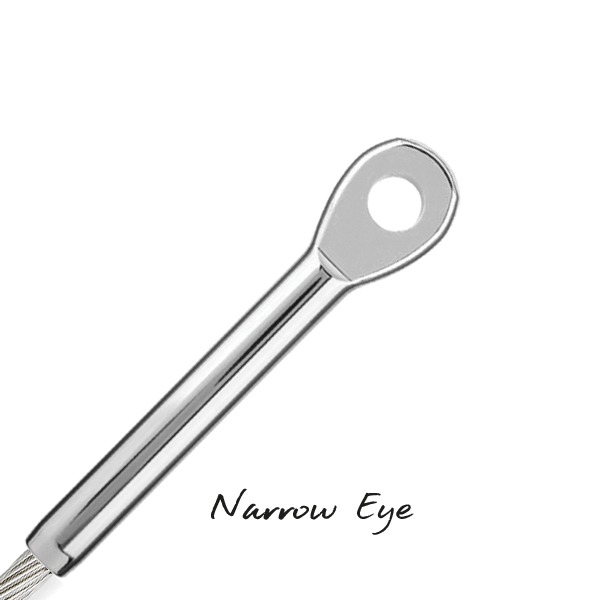

    039N-03 3 MM1/8"6.20.2454.00.1576.51/4"0.0140.031Narrow
    039N-04 4 MM5/32"7.40.2925.00.1978.55/16"0.0220.049Narrow
    039N-05 5 MM3/16"9.00.3546.00.23610.03/8"0.0400.088Narrow
    130N-55 -7/32"10.70.4228.00.31511.57/16"0.1000.220Narrow
    039N-06 6 MM-12.40.4888.00.31511.57/16"0.1000.220Narrow
    130N-06 -1/4"12.50.4948.00.31513.01/2"0.1000.220Narrow
    039N-07 7 MM9/32"14.20.5589.00.35413.01/2"0.1200.265Narrow
    039N-08 8 MM5/16"16.10.63010.00.39413.01/2"0.1800.397Narrow
    039N-08-5/8 8 MM5/16"16.10.63012.00.47216.55/8"0.2400.529Narrow
    039N-10 10 MM-17.70.69811.00.43316.25/8"0.2600.573Narrow
    130N-10 -3/8"17.70.69811.00.43316.05/8"0.2400.529Narrow
    039N-12 12 MM-21.40.84215.00.59119.53/4"0.5201.146Narrow
    130N-12 -1/2"21.30.83915.00.59119.53/4"0.5201.146Narrow
    039N-14 14 MM9/16"25.00.97918.0-22.57/8"0.8001.764Narrow
    039N-16 16 MM5/8"28.21.10420.0-25.71"1.1802.601Narrow

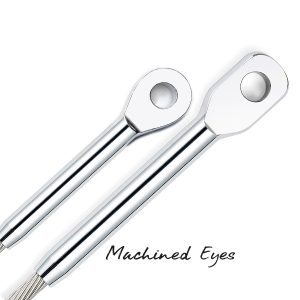

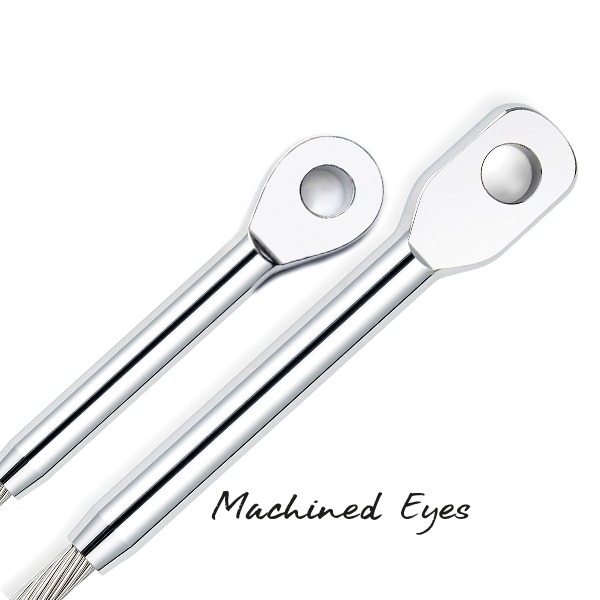

    130-11 -7/16"19.60.77318.00.70919.53/4"0.5201.146Machined not forged
    039-12 12 MM-21.40.84218.00.70919.53/4"0.5201.146Machined not forged
    130-12 -1/2"21.30.83918.00.70919.53/4"0.5201.146Machined not forged
    039-14 14 MM9/16"25.00.97921.00.82722.57/8"0.8001.764Machined not forged
    039-16 16 MM5/8"28.21.10424.40.96125.71"1.1802.601Machined not forged
    039-19 19 MM3/4"34.51.35427.51.08328.61 1/8"1.9004.189Machined not forged
    039-22 22 MM7/8"40.31.58832.01.26032.01 1/4"2.8006.173Machined not forged
    039-26 26 MM1"45.81.80734.01.33935.01 3/8"3.9508.708Machined not forged
    039-12-78 12 MM-21.40.84218.00.70922.57/8"0.5201.146Up Sized Pin Hole
    039-14-1 14 MM9/16"25.00.97921.00.82725.71"0.8001.764Up Sized Pin Hole
    039-16-118 16 MM5/8"28.21.10424.40.96128.61 1/8"1.1802.601Up Sized Pin Hole
