Inch Only | Metric Only |

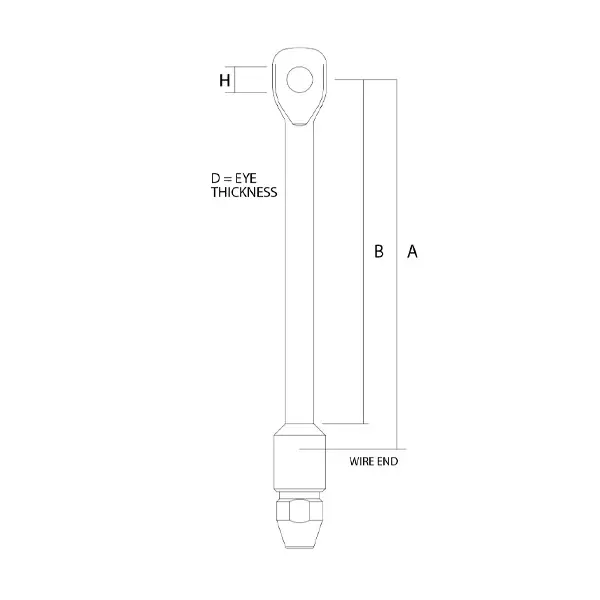

SKU | Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | B (MM) | B (INCH) | D (MM) | D (INCH) | H (MM) | H (INCH) | Weight (KG) | Weight (LB) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
078-05 | 5 MM | - | 106.0 | 4.187 | 82.5 | 3.250 | 7.5 | 0.295 | 9.8 | 3/8" | 0.120 | 0.265 |
178-05 | - | 3/16" | 106.0 | 4.187 | 82.5 | 3.250 | 7.5 | 0.295 | 9.8 | 3/8" | 0.120 | 0.265 |
178-55-3/8 | - | 7/32" | 126.0 | 4.875 | 100.0 | 3.937 | 7.5 | 0.295 | 9.8 | 3/8" | 0.200 | 0.441 |
178-55 | - | 7/32" | 126.0 | 4.875 | 100.0 | 3.937 | 9.5 | 0.375 | 11.5 | 7/16" | 0.200 | 0.441 |
078-06-3/8 | 6 MM | - | 126.0 | 4.875 | 100.0 | 3.937 | 7.5 | 0.295 | 9.8 | 3/8" | 0.200 | 0.441 |
078-06 | 6 MM | - | 126.0 | 4.875 | 100.0 | 3.937 | 9.5 | 0.375 | 11.5 | 7/16" | 0.200 | 0.441 |
078-06-1/2 | 6 MM | - | 147.0 | 5.750 | 117.5 | 4.625 | 12.0 | 0.472 | 13.0 | 1/2" | 0.260 | 0.573 |
178-06-3/8 | - | 1/4" | 126.0 | 4.875 | 100.0 | 3.937 | 7.5 | 0.295 | 9.8 | 3/8" | 0.200 | 0.441 |
178-06 | - | 1/4" | 147.0 | 5.750 | 117.5 | 4.625 | 12.0 | 0.472 | 13.0 | 1/2" | 0.260 | 0.573 |
078-07 | 7 MM | 9/32" | 147.0 | 5.781 | 117.5 | 4.625 | 12.0 | 0.472 | 13.0 | 1/2" | 0.300 | 0.661 |
078-08 | 8 MM | 5/16" | 147.0 | 5.781 | 117.5 | 4.625 | 12.0 | 0.472 | 13.0 | 1/2" | 0.360 | 0.794 |
078-08-5/8 | 8 MM | 5/16" | 175.0 | 6.889 | 136.4 | 5.369 | 13.5 | 0.531 | 16.0 | 5/8" | 0.540 | 1.190 |
078-10 | 10 MM | - | 175.0 | 6.889 | 136.4 | 5.369 | 13.5 | 0.531 | 16.0 | 5/8" | 0.640 | 1.411 |
178-10 | - | 3/8" | 175.0 | 6.889 | 136.4 | 5.369 | 13.5 | 0.531 | 16.0 | 5/8" | 0.640 | 1.411 |
178-11 | - | 7/16" | 254.0 | 10.000 | 205.8 | 8.102 | 19.0 | 0.748 | 19.5 | 3/4" | 1.300 | 2.866 |
078-12 | 12 MM | - | 254.0 | 10.000 | 205.8 | 8.102 | 19.0 | 0.748 | 19.5 | 3/4" | 1.300 | 2.866 |
178-12 | - | 1/2" | 254.0 | 10.000 | 205.8 | 8.102 | 19.0 | 0.748 | 19.5 | 3/4" | 1.300 | 2.866 |
078-14 | 14 MM | 9/16" | 330.0 | 13.000 | 280.5 | 11.000 | 21.0 | 0.827 | 22.5 | 7/8" | 2.100 | 4.630 |
078-16 | 16 MM | 5/8" | 320.0 | 12.600 | 303.6 | 11.955 | 24.0 | 0.945 | 25.6 | 1" | 2.700 | 5.952 |
