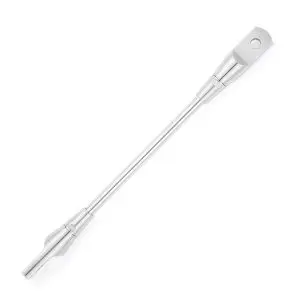

    Spade F33 System

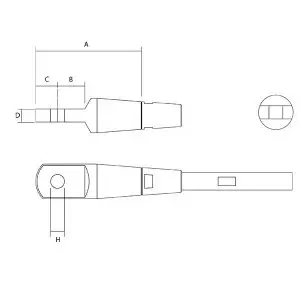

    Spade F33 Fitting

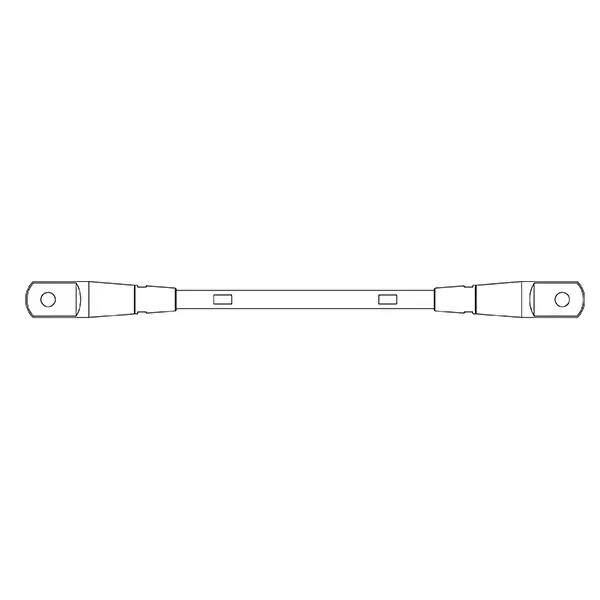

    Spade F33 System Drawing
    Spade F33 System
    Spade F33 Fitting

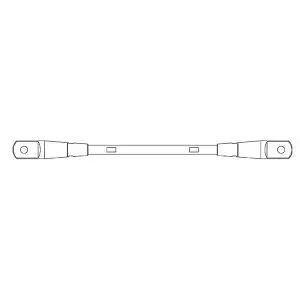

    Spade F33 System Drawing

    Spade F33 System

    The fully machined F33 spade system is an alternative end fitting option for fixing plates where a clevis fitting is unsuitable. The Sta-Lok spade system is designed to meet modern constructional tolerances and projects with
    small adjustment requirements. System lengths up to 6 meters are available, rod connectors can be used to achieve longer spans.

    • All Rods and components are machined from solid stainless steel alloys offering maximum strength and superiority over other manufacturing processes
    • Tie rods adjustment is achieved by rotating in a clockwise/counter-clockwise direction
    • Machined Spanner Flats included as standard
    • Conical locking nuts cover tie rod threads at mid adjustment, providing a clean line between the rod and end fitting
    • Tie rod systems are supplied ready to install. Spade ends are pre-assembled and adjusted to your hole centre requirements
    • Available in Satin (standard) or Polished Finish
    Product Code: F33SS

    Show Information for:

    Left Hand Right Hand

    Inch Only Metric Only
    SKU Thread (UNF)Thread (Metric)Assembly Adjustment +/- (MM)Assembly Adjustment +/- (INCH)Yield Load (KN)Yield Load (KIPS)Break Load (KN)Break Load (KIPS)A (MM)A (INCH)B (MM)B (INCH)C (MM)C (INCH)D (MM)D (INCH)H (MM)H (INCH)
    F33SS-M6 - M6 15 0.591 8.9 2.00 12.5 2.81 52.0 2.047 10.0 0.394 9.0 0.354 6.0 0.236 6.3 0.250
    F33SS-14 1/4" - 15 0.591 7.5 1.69 14.3 3.21 52.0 2.047 10.0 0.394 9.0 0.354 6.0 0.236 6.3 0.250
    F33SS-M8 - M8 15 0.591 16.4 3.69 23.0 5.17 57.0 2.244 14.0 0.551 11.0 0.433 8.0 0.315 8.0 0.315
    F33SS-516 5/16" - 15 0.591 12.1 2.72 22.9 5.15 57.0 2.244 14.0 0.551 11.0 0.433 8.0 0.315 8.0 0.315
    F33SS-M10 - M10 15 0.591 26.1 5.87 36.6 8.23 74.0 2.913 20.0 0.787 16.0 0.630 11.0 0.433 11.0 0.433
    F33SS-38 3/8" - 15 0.591 18.6 4.18 35.3 7.94 74.0 2.913 20.0 0.787 16.0 0.630 11.0 0.433 11.0 0.433
    F33SS-M12 - M12 15 0.591 38.1 8.57 53.4 12.00 97.0 3.819 25.0 0.984 20.0 0.787 12.0 0.472 12.7 0.500
    F33SS-12 1/2" - 15 0.591 34.1 7.67 64.8 14.57 97.0 3.819 25.0 0.984 20.0 0.787 12.0 0.472 12.7 0.500
    F33SS-M16 - M16 15 0.591 72.1 16.21 100.9 22.68 104.0 4.094 30.0 1.181 26.0 1.024 16.0 0.630 16.0 0.630
    F33SS-58 5/8" - 15 0.591 54.9 12.34 104.3 23.45 104.0 4.094 30.0 1.181 26.0 1.024 16.0 0.630 16.0 0.630
    F33SS-M20 - M20 15 0.591 103.6 23.29 144.0 32.37 136.0 5.354 40.0 1.575 30.0 1.181 19.0 0.748 19.0 0.748
    F33SS-34 3/4" - 20 0.787 80.4 18.07 137.8 30.98 136.0 5.354 40.0 1.575 30.0 1.181 19.0 0.748 19.0 0.748
    F33SS-M22 - M22 20 0.787 129.5 29.11 180.1 40.49 152.0 5.984 45.0 1.772 30.0 1.181 22.0 0.866 22.0 0.866
    F33SS-78 7/8" - 20 0.787 109.9 24.71 188.4 42.35 152.0 5.984 45.0 1.772 30.0 1.181 22.0 0.866 22.0 0.866
    F33SS-M24 - M24 20 0.787 149.2 33.54 207.5 46.65 174.0 6.850 50.0 1.969 40.0 1.575 25.0 0.984 25.4 1.000
    F33SS-100 1" - 20 0.787 142.9 32.13 245.0 55.08 174.0 6.850 50.0 1.969 40.0 1.575 25.0 0.984 25.4 1.000
    F33SS-M27 - M27 20 0.787 196.4 44.15 273.3 61.44 181.0 7.126 50.0 1.969 41.0 1.614 28.0 1.102 29.0 1.142
    F33SS-118 1 1/8" - 20 0.787 243.8 54.81 339.3 76.28 181.0 7.126 50.0 1.969 41.0 1.614 28.0 1.102 29.0 1.142
    F33SS-M30 - M30 25 0.984 238.7 53.66 332.1 74.66 210.0 8.268 55.0 2.165 51.0 2.008 30.0 1.181 30.5 1.201
    F33SS-114 1 1/4" - 25 0.984 307.1 69.04 427.3 96.06 210.0 8.268 55.0 2.165 51.0 2.008 31.7 1.250 32.0 1.260
    F33SS-M36 - M36 25 0.984 349.2 78.50 485.8 109.21 246.0 9.685 70.0 2.756 60.0 2.362 35.0 1.339 36.0 1.417
